The unglassed Simmons

I had some time over Christmas between some great long surf sessions to build a board I had been thinking of for some time .What I have tried to achieve here is a simple way of making a wooden board with less time , materials , weight and cost involve. Not necessarily a greener board in any way , but it is probably a long way towards that as well. My theory is that the materials used are far more compatible flex wise so that if they need to move they will all go together. Where as if you were to use resin whether epoxy or urethane which is hard and not as compatible flex wise. So it may be more likely to come away from the foam as it is the softer material. The other thing is the Paulownia , the Polyurathane glue and the Styrene blank are all waterproof. The proof will be in pudding as they say when she gets waxed up and surfed. It feels good and the weight is great .You will also notice I have not used a breather as the blank is very hard and there is very little air between the styrene beads.

I started with one of my foam boards that I have designed in AKU Shaper and took 7mm off the thickness and 20mm off the rails all round. This was then cut from a hard Core Fusion EPS blank.

After sanding the blank I glued a 3mm Paulownia rail band / parabolic stringer round the outside of the blank.

The stringer is there to hold the rocker in the board and to aid in some following processes. It also seals the blank on one face.After the glue has gone off I trimmed the timber down to the blank and shaped it to the foil of the blank as well.

The polyurethane glue is spread over the foam blank and I sprayed a mist of water on the timber as the glue goes off with moisture.The 4mm deck and 3mm bottom skins are cut to approx 5mm oversize all round , taped together and placed in the bag. The glue has a 30 minute working time , so plenty of time to set things up.

A piece of shade cloth give the air some space to be sucked out without sucking straight onto the wooden.

The glues takes 2 hours to go off so the pump is left on for that time.It pulls down very well and very evenly. Best to gather up the excess bag on one side prior to pumping the air out. That way the bag is tight to the board on the edges and when the air comes out it pulls straight down on the skins rather than being able to get sucked in between the skins and rail bands. Which can happen. The masking tape also helps to keep it out during this time.

Then when it is all set , slide it out of the bag and trim the excess 5mm all round. This is also where the parabolic stringer comes in handy. Make sure to keep the face square as this is important.

There are 6 x 3mm laminates to make up the nose as it is easier to bend these thinner strips , although you may be able to steam or heat them to make it easier. I have not tried that yet.

All 6 nose laminates on and then trimmed with the Japanese saw at a slight angle which will help hold or key the next rail bands in position. I have also rough trimmed them down to the deck and bottom skins.

Not a big mess yet.

3 x 6mm thick rail bands glued on and tail block laminated as well.

Here I have planned the rail bands down to the foil of the board prior to rough shaping the rails. So the outer edge of the rail band is still square at this point.

I used a small hand plane to bring the rails down rather than the electric planner just to get more feeling for the wood and what was happening. I felt better doing it this way . A bit slower and hard work but you only get one shot at this.

All shaped and leash plug epoxied in.

I used Futures fin boxes and took extra foam out right through to the deck timber to key it all together as there is no glass over the boxes as you would do in a glass board.

These are the new Rasta Bamboo quad set from Futures Fins.

I have finished the board with 4 coats on Lanotec which is lanolin or the waterproof oil / grease from sheep's wool. It is not to waterproof the wood but to condition it in the first instance. The waterproofing properties can't hurt as well.

Looking forward to some feedback once it gets in the water. I will keep you posted.

If you have any questions email me : grantnewby@bigpond.com

Flama Mini Simmons

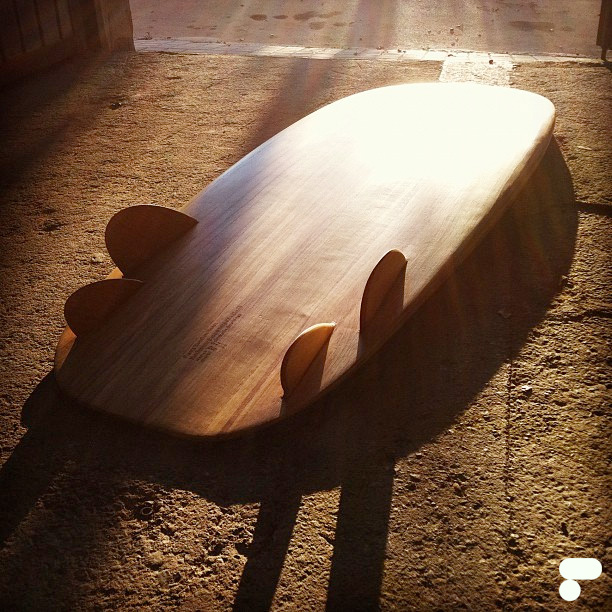

 Sergi  from Flama Surfboards in Barcelona , Spain has just sent me an update on their new factory and one of their new models. The Mini Simmons.

 They use Paulownia to make blanks that have solid rails.

 Here is one rough shaped , ready for fine tuning and sanding.

 Here you can see from the paper template the outline of where the solid rails are so as to know how far into the blank they can take away when shaping the rails.



For more on their boards and what they are up to , check them out at : www.flamasurf.com

John Sutcliffe from Mangawhai on his home built wooden twin keel fish surfboard enjoys a small peeling wave at Ruakaka beach.

John is a regular support of the wooden board day each year and loves his wooden boards.Great to see them out in the surf where they are supposed to be.
Nice one Johnny.

We kick off the New Year with a couple of boards from Florida

Just got these shots from Edward Hamilton 111 , Jacksonville Florida. He has built a few and is about to launch his website. Great to see guys out there everywhere building boards and look forward to another year and more innovative , creative and exotic wooden surfboards. Guys send in your shots and lets share them. All of us who have ever built a wooden board know there are no easy ways to build one so, if you have you know we are just as stoked as you are.

Happy New Year

Happy New Year to you all . Thanks for your support and I hope that the coming year treats you well.

First every British surfer takes to waves in 1929

 Homemade: Lewis Rosenberg entered the water in Newquay, Cornwall, with a primitive homemade 8ft board he carved out of balsa wood.

Riding the waves: Some of the earliest ever video of surfing which shows Lewis Rosenberg on a surfboard at Holywell Bay in Newquay, Cornwall.

Check out the full story and some great video : Here

Hand made in Brooklyn...

 Davis Murphy has a great range of handplanes to share with us.

" Some of these little guys are from the scraps of a chambered board I've been working on-more pics of that when it's done! They're all made with supersap bioresin, and 0 voc clear coat, paulownia, walnut, cedar, mohagany and the straps are covered with recycled patagonia wetsuit scraps."

Check out what else he has or if you would like to order one : innercirclesurf.tumblr.com

Greg's new mal

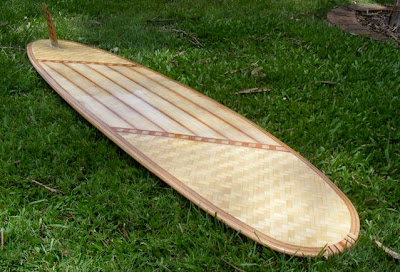

 Greg Wheeldon from Brisbane has been busy at it again. Lots of detail once again. Great to see the effort he puts into his boards.

" I finished a new 8’ Mal for myself, and pick it up from the glasser on Xmas Eve.  Once the sting goes from the cyclone swell, I will be christening the new board."

" The board is 8’ x 21 1/2 x 2 1/2, paulownia and western red cedar, with a woven bamboo feature panel in the nose and tail pads.  Glassed on fin with a checker pattern to match the deck detail."

 "Another one for the quiver.  Hope to see you out at Currumbin over the Xmas New Year break."

"My son is finishing a 6’ retro pintail with a rising sun radial pattern in the nose.  I’ll send you photos, when complete."

Greg Wheeldon.

Merry Christmas

Merry Christmas to all of you who have supported me this year. There have been some great boards built and many guys experimenting and trying new things.I look forward to what you come up with next year.

Have a safe and happy time with family and friends where ever you are.

Grant

Woody quad for Deux in Venice

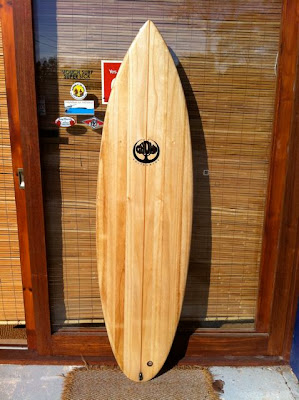

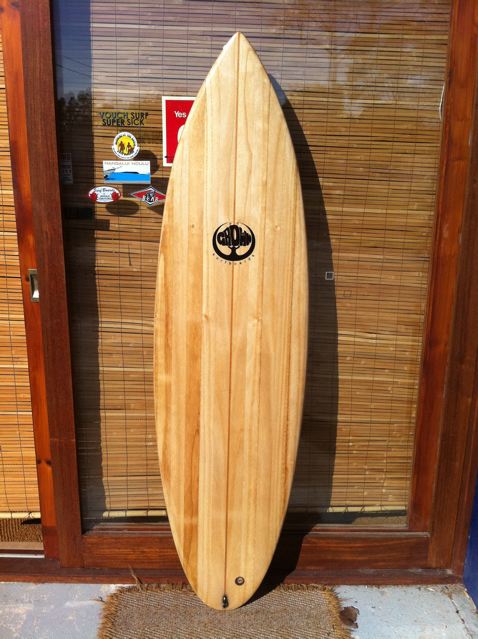

 Great to see Andrew from Grown Surfboards in Lennox Heads is getting his boards out there. This one is on its way to California to go into the new Deus Ex Machina store that they are opening in Venice Beach. It is all paulownia with a cedar stringer and glass fins.

Nice job Andy. To find out more of what he is up to : www.grownsurfboards.com.au
